Hall Effect Sensors
- Operating voltage range 5 to 24 VDC
- Non-contact switching
- Vibration tolerant
- Omnipolar sensing
- Activates via magnetic north or south pole
- Digital square wave output signal
- NPN (sinking) output
- PNP (sourcing) available
- Operating temperature range -40° F to 300° F
Phares Electric Digital Output Hall Effect Sensors are some of the most robust and reliable on the market today. They are built for use in harsh environments including high temperature, wash down areas, outdoor, oil, dust, dirt, corrosive, and heavy vibration. Most of the Phares Digital Output Hall Effect Sensors have 1/2″ NPT threads which conveniently seal to 1/2″ conduit for quick, clean installation. Various sensor barrel lengths allow greater flexibility for mounting and bracket location. Use a Phares Terminal Strip Assembly (TSA) Box for mounting, termination, and applications which require long cable runs.
Need help choosing a hall effect sensor? Email or call us at 727-351-2505 today.
Download or view as PDF:

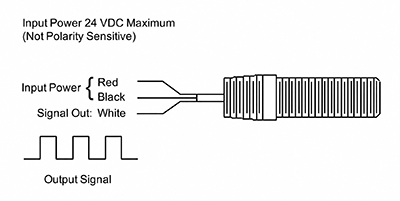

Phares Hall Effect Sensors are simple on/off non-contact switching (NPN) devices. They are magnetically activated sensors which detect the motion or position of a magnetic target. Omnipolar operation activates sensor with either a north or south polarity field.
Our Digital Output Hall Effect Sensors produce a square wave frequency signal that is directly proportional to the input (linear). The digital output signal is compatible with logic inputs (PLC, VFD, DCS) and other devices which can measure frequency directly. This includes Phares Industrial Tachometers and Zero Speed Switch Modules.
Phares Digital Output Hall Effect Sensors have an NPN (sinking) output; PNP (sourcing) output is available.
Need help choosing a hall effect sensor? Email or call us at 727-351-2505 today.
Certifications:
Conforms to the following standards:
CAN/CSA C22.2 No. 61010-1:2012
UL 61010-1:2012
EN 61010-1:2012
IP68
Ultra Mini Hall Effect Sensor
Part Numbers and Specifications for Ultra Mini Hall Effect Sensor
| Part No. UMS03-01 – 1′ Cable Length Part No. UMS03-06 – 6′ Cable Length Part No. UMS03-10 – 10′ Cable Length Custom cable lengths available Specifications Barrel Length: 2″ Operating Voltage: 5 to 24 VDC, 3.5mA Operating Temperature: -40° F to 140° F |
Mini Hall Effect Sensor
Part Numbers and Specifications for Mini Hall Effect Sensor
| Ambient Operating Temperature: -40° F to 140° F |
| Part No. MS0303-01 – 1′ Cable Length Part No. MS0303-06 – 6′ Cable Length Part No. MS0303-10 – 10′ Cable Length Custom cable lengths available |
| High Operating Temperature: -40° F to 300° F |
| Part No. MHTS0303-01 – 1′ Cable Length Part No. MHTS0303-06 – 6′ Cable Length Part No. MHTS0303-10 – 10′ Cable Length Custom cable lengths available |
| Specifications |
| Barrel Length: 3″ Operating Voltage: 5 to 24 VDC, 3.5mA Questions? Email or call us at 727-351-2505 today |
Hall Effect Sensor with 1″ Long Barrel
Part Numbers and Specifications for Hall Effect Sensor with 1″ Long Barrel
| Ambient Operating Temperature: -40° F to 140° F |
| Part No. S0401-01 – 1′ Cable Length Part No. S0401-06 – 6′ Cable Length Part No. S0401-10 – 10′ Cable Length Custom cable lengths available |
| High Operating Temperature: -40° F to 300° F |
| Part No. HTS0401-01 – 1′ Cable Length Part No. HTS0401-06 – 6′ Cable Length Part No. HTS0401-10 – 10′ Cable Length Custom cable lengths available |
| Specifications |
| Barrel Length: 1″ Operating Voltage: 5 to 24 VDC, 3.5mA Questions? Email or call us at 727-351-2505 today |
Hall Effect Sensor with 1.5″ Long Barrel
Part Numbers and Specifications for Hall Effect Sensor with 1.5″ Long Barrel
| Ambient Operating Temperature: -40° F to 140° F |
| Part No. S0415-01 – 1′ Cable Length Part No. S0415-06 – 6′ Cable Length Part No. S0415-10 – 10′ Cable Length Custom cable lengths available |
| High Operating Temperature: -40° F to 300° F |
| Part No. HTS0415-01 – 1′ Cable Length Part No. HTS0415-06 – 6′ Cable Length Part No. HTS0415-10 – 10′ Cable Length Custom cable lengths available |
| Specifications |
| Barrel Length: 1.5″ Operating Voltage: 5 to 24 VDC, 3.5mA Questions? Email or call us at 727-351-2505 today |
Hall Effect Sensor with 2″ Long Barrel
Part Numbers and Specifications for Hall Effect Sensor with 2″ Long Barrel
| Ambient Operating Temperature: -40° F to 140° F |
| Part No. S0402-01 – 1′ Cable Length Part No. S0402-06 – 6′ Cable Length Part No. S0402-10 – 10′ Cable Length Custom cable lengths available |
| High Operating Temperature: -40° F to 300° F |
| Part No. HTS0402-01 – 1′ Cable Length Part No. HTS0402-06 – 6′ Cable Length Part No. HTS0402-10 – 10′ Cable Length Custom cable lengths available |
| Specifications |
| Barrel Length: 2″ Operating Voltage: 5 to 24 VDC, 3.5mA Questions? Email or call us at 727-351-2505 today |
Hall Effect Sensor with 3″ Long Barrel
Part Numbers and Specifications for Hall Effect Sensor with 3″ Long Barrel
| Ambient Operating Temperature: -40° F to 140° F |
| Part No. S0403-01 – 1′ Cable Length Part No. S0403-06 – 6′ Cable Length Part No. S0403-10 – 10′ Cable Length Custom cable lengths available |
| High Operating Temperature: -40° F to 300° F |
| Part No. HTS0403-01 – 1′ Cable Length Part No. HTS0403-06 – 6′ Cable Length Part No. HTS0403-10 – 10′ Cable Length Custom cable lengths available |
| Specifications |
| Barrel Length: 3″ Operating Voltage: 5 to 24 VDC, 3.5mA Questions? Email or call us at 727-351-2505 today |
Hall Effect Sensor with 4″ Long Barrel
Part Numbers and Specifications for Hall Effect Sensor with 4″ Long Barrel
| Ambient Operating Temperature: -40° F to 140° F |
| Part No. S0404-01 – 1′ Cable Length Part No. S0404-06 – 6′ Cable Length Part No. S0404-10 – 10′ Cable Length Custom cable lengths available |
| High Operating Temperature: -40° F to 300° F |
| Part No. HTS0404-01 – 1′ Cable Length Part No. HTS0404-06 – 6′ Cable Length Part No. HTS0404-10 – 10′ Cable Length Custom cable lengths available |
| Specifications |
| Barrel Length: 4″ Operating Voltage: 5 to 24 VDC, 3.5mA Questions? Email or call us at 727-351-2505 today |
